Spindle moulder FSN300A
The design of this machine went through a lot of technical innovations which increased the useful featurettes of the machine. Quality processing ranks this spindle moulder among the best in its class. It is especially popular among smaller and middle-sized producers. It is equipped with a sliding table with very precise and solid mounting on steel round bars CV 360T in basic version.
The spindle mounting in a robust tilting cast iron body guarantees accuracy, solidity, and reliability.
Product code: 1327000
Technical parameters
| S6 engine performance 40% | 4,4 kW/3x400V (2,2 kW/1x230V) |
| Motor speed | 2,840/min (3,410/min [60Hz]) |
| Spindle diameter | Ø 30 mm (32 | 40 | 50 ) |
| Spindle speed | 2 500; 3 500; 6 000; 8 000; 10 000/min. |
| Max. spindle stroke | 140 mm |
| Spindle length | 130 mm |
| Spindle tilt | -5° ÷ +45° |
| Max. diameter of hole in table | Ø 220 mm |
| Max. tool diameter under the table | Ø 175 mm |
| Max. tool diameter above the table | Ø 200 mm |
| Length (at CV360 - 1 200 mm) | 1 700 mm |
| Length (at CV360 - 2 000 mm) | 2 300 mm |
| Width | 800 mm |
| Width with support frame | 1 980 mm |
| Table height | 897 mm |
| Max. machine height | 1 300 mm |
| Table dimensions | 1 000 x 350 mm |
| Suction diameter | 100 mm |
| Gross weight | 275 kg |
| Net weight | 275 kg |
| Table dimensions | 360 x 1 200 (2 000) mm |
| Travel length | 1 370 (2 170) mm |
| Support frame dimensions | 870 x 630 mm |
| Voltage/frequency | 3x400V (3x230V | 1x230V) / 50(60)Hz |
| Line protection | 16 A (25 A) |
| Workplace noise (without technology) | 70.4 dB(A) |
| Workplace noise (with technology) | 83.0 dB(A) |
| Acoustic performance (without technology) | 78.6 dB(A) |
| Acoustic performance (with technology) | 88.5 dB(A) |
Warranty conditions
- 12 months
You will definitely appreciate this product

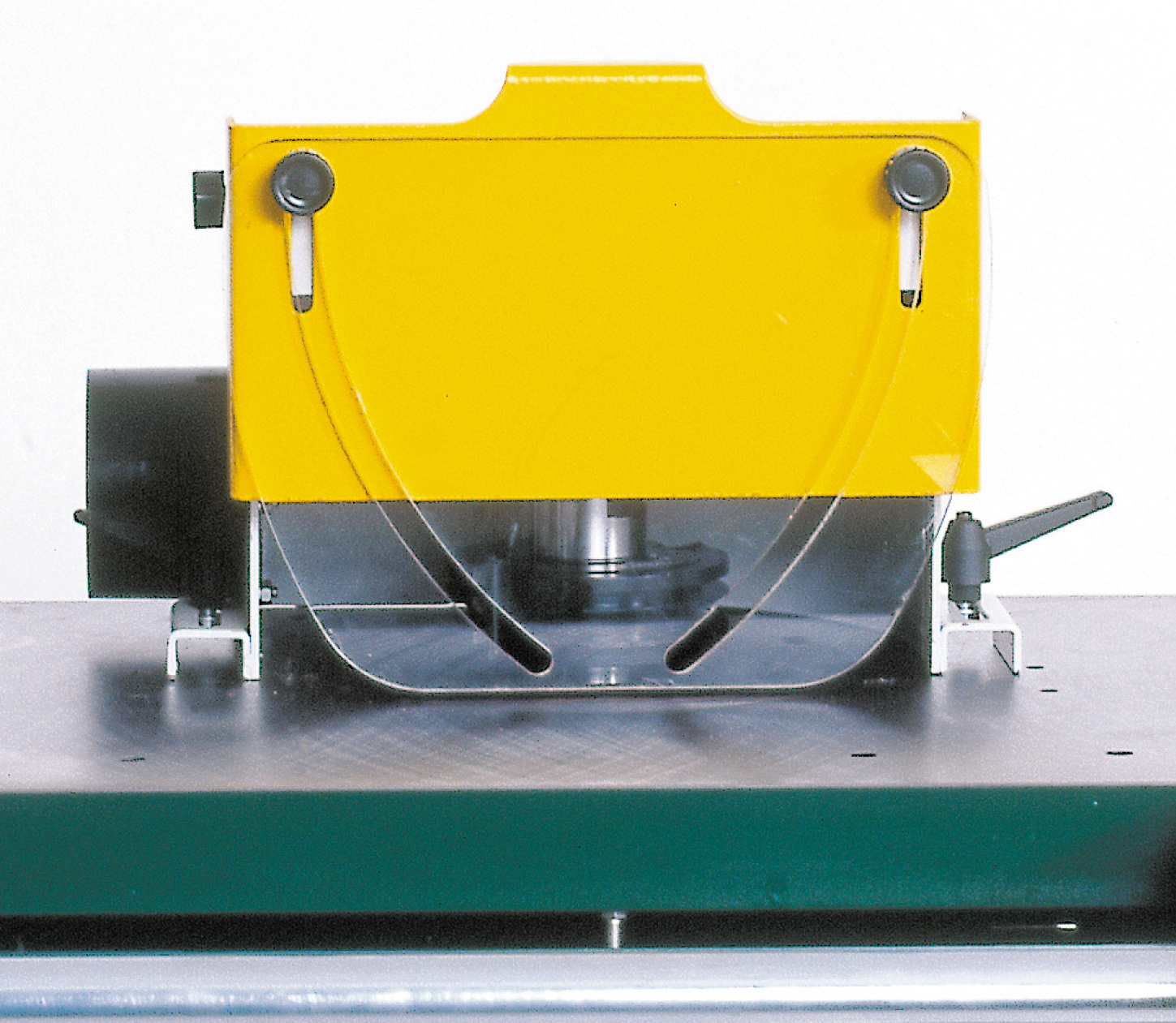

Capping cover

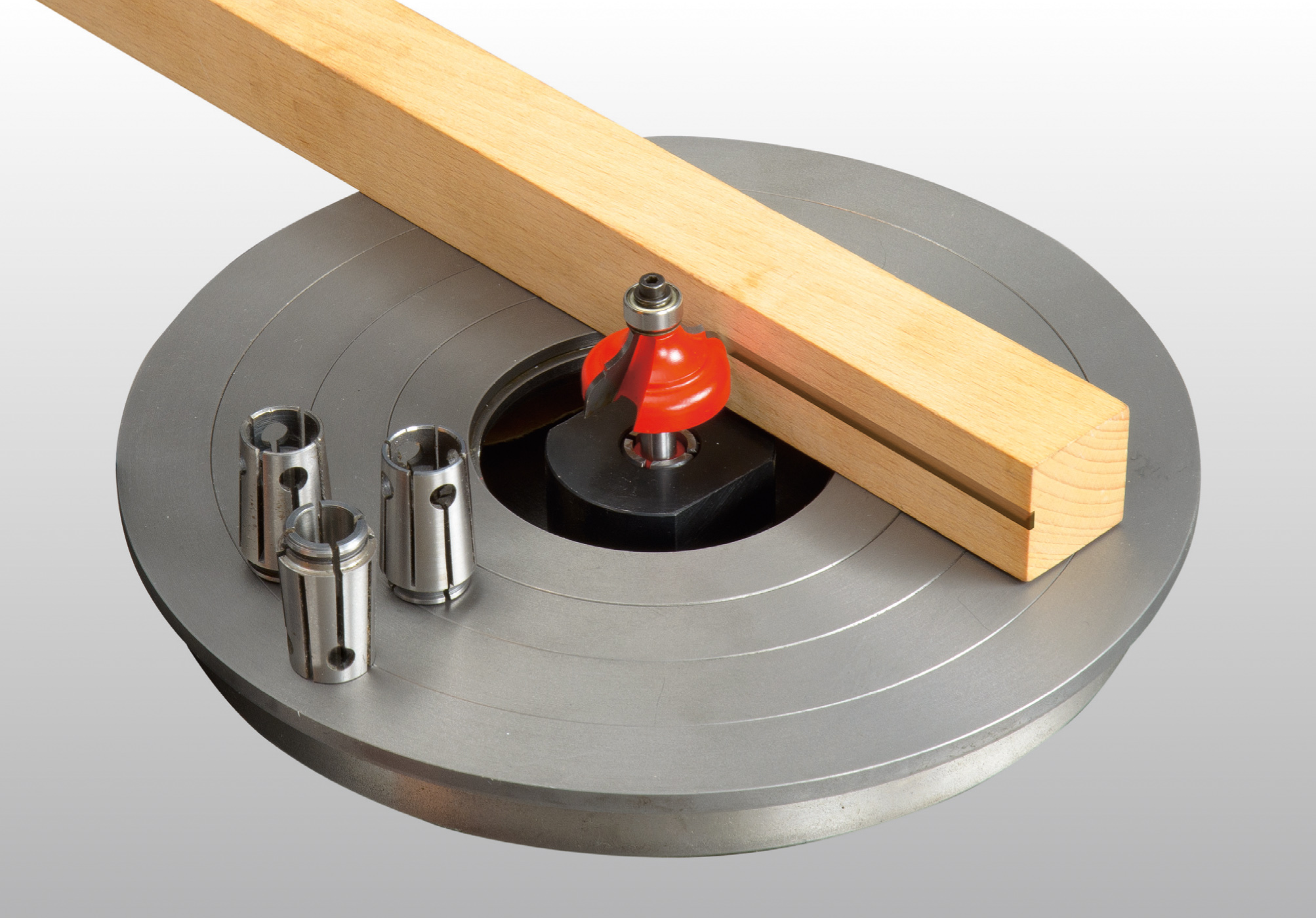

Clamp for shank tools

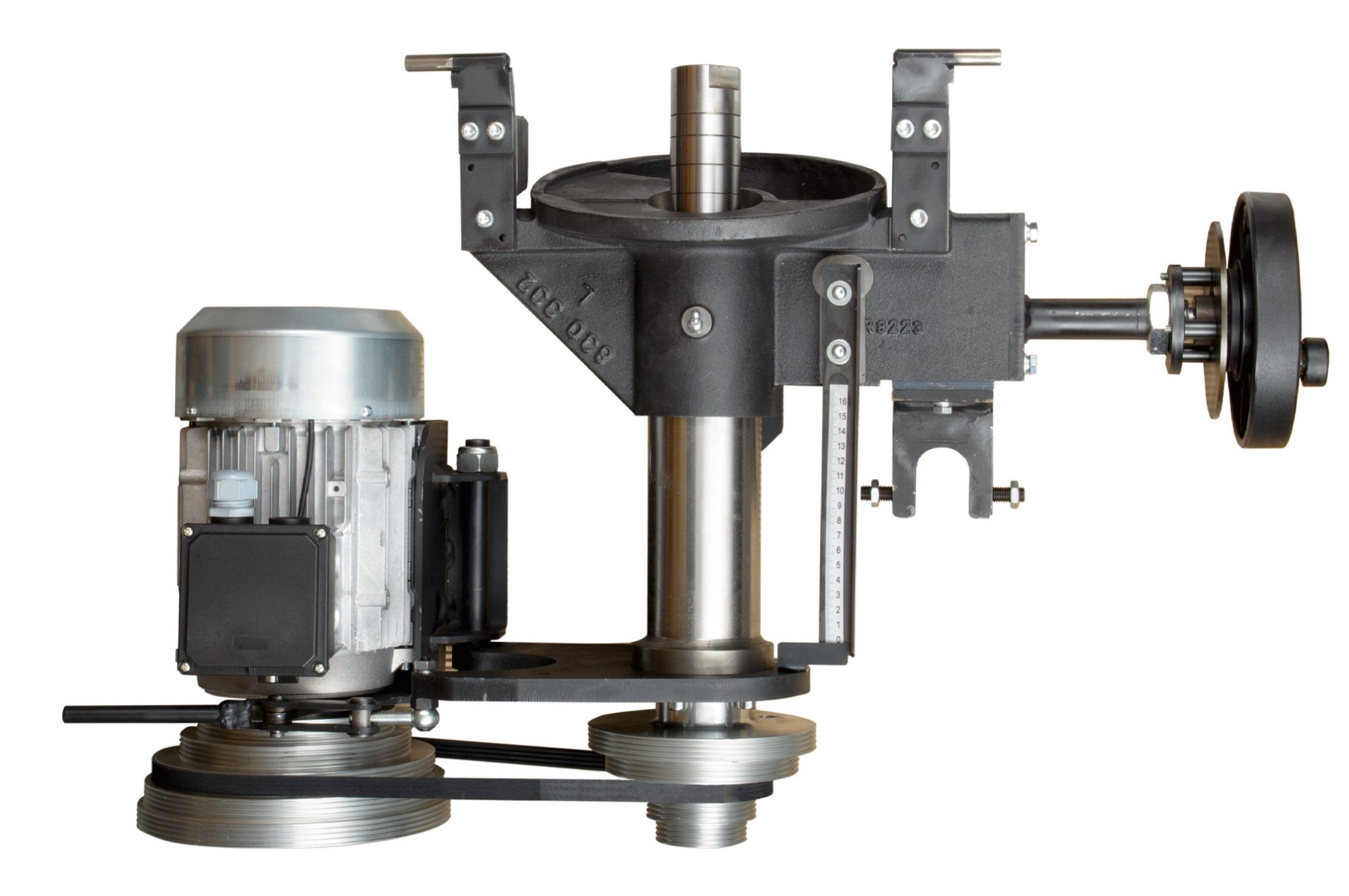

Complete mechanics part

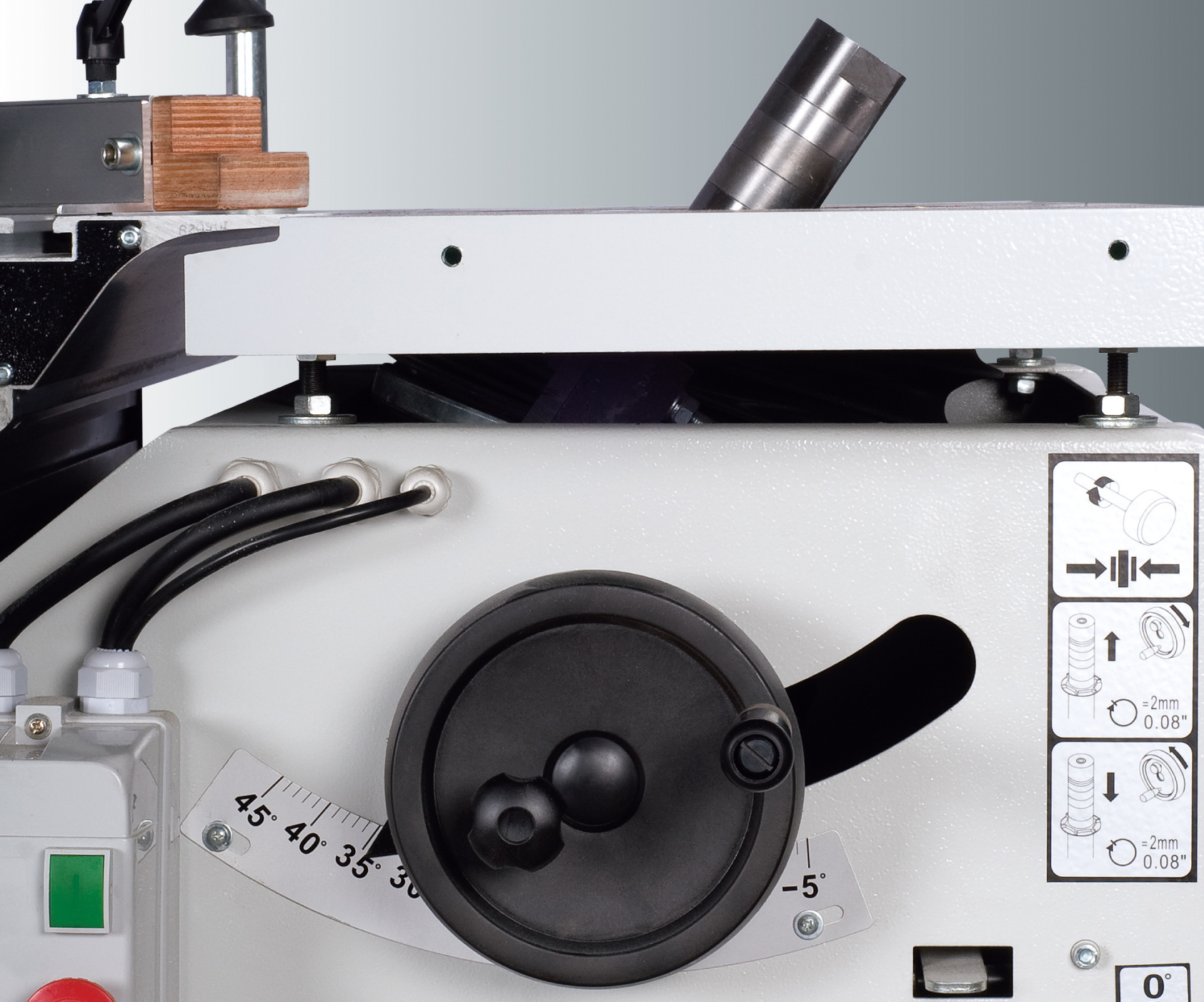

Shaft tilt -5°, 0°, 45°

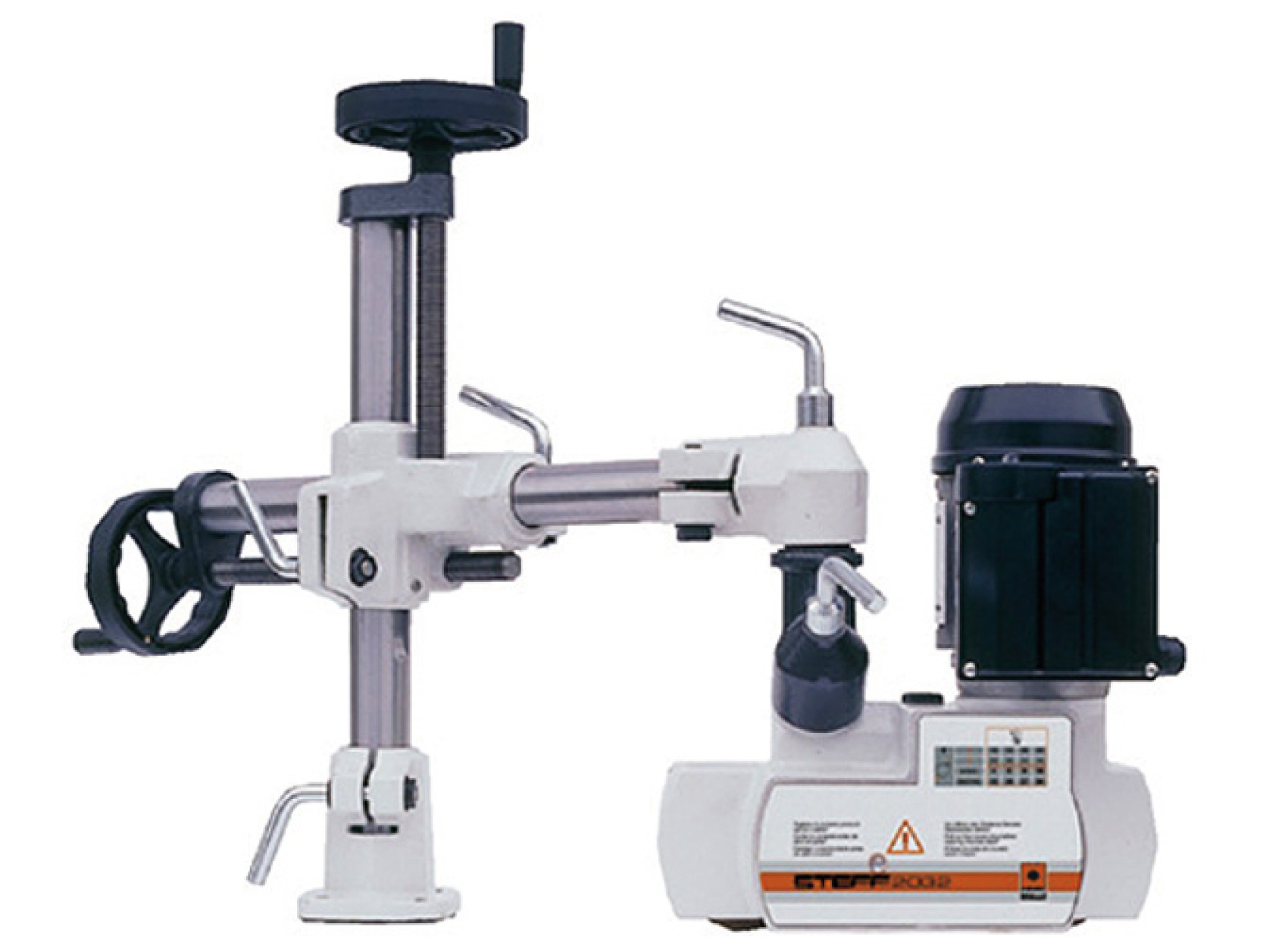

Feeding device
Support frame and ruler

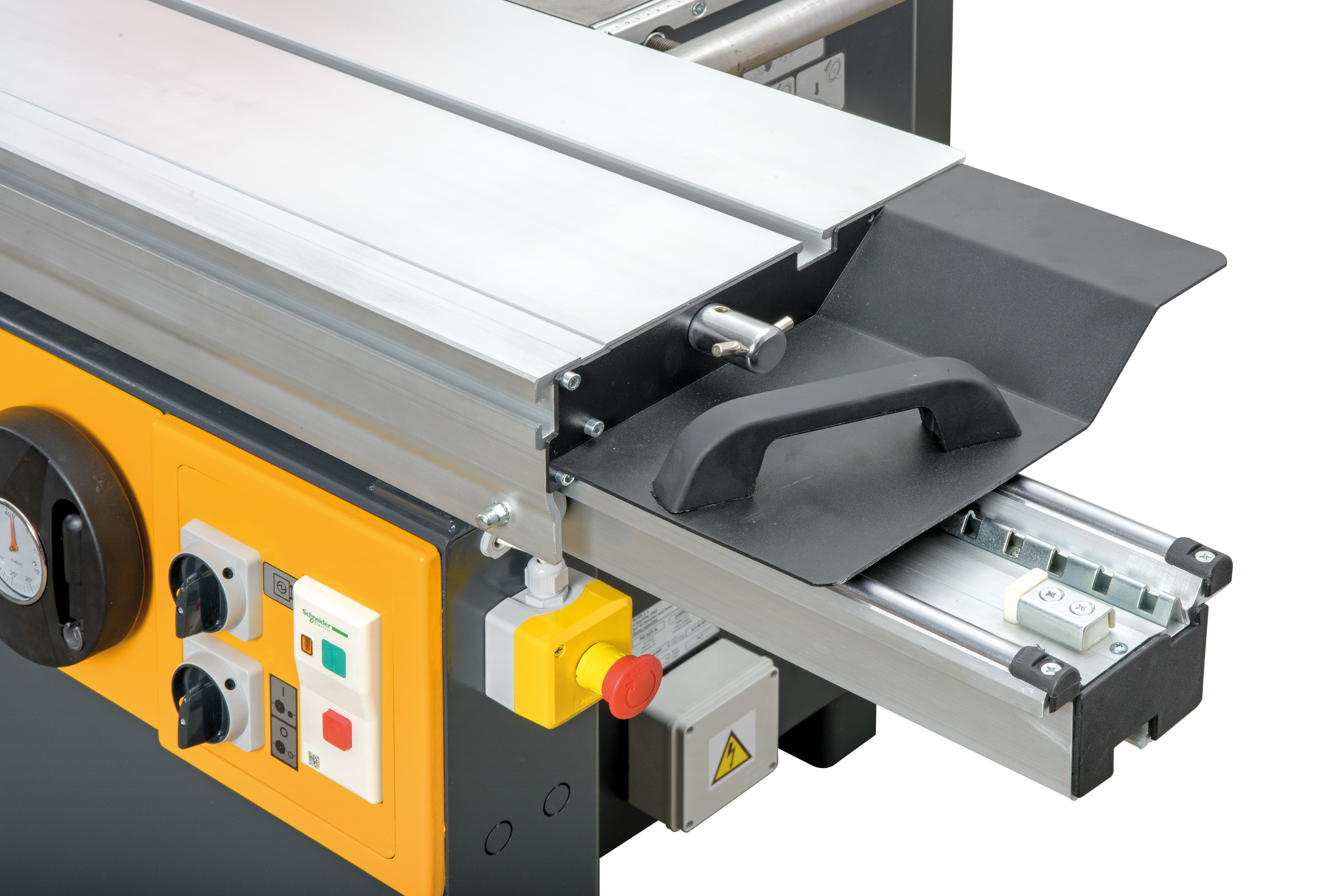

Storage of the CV360T formatting table on bars

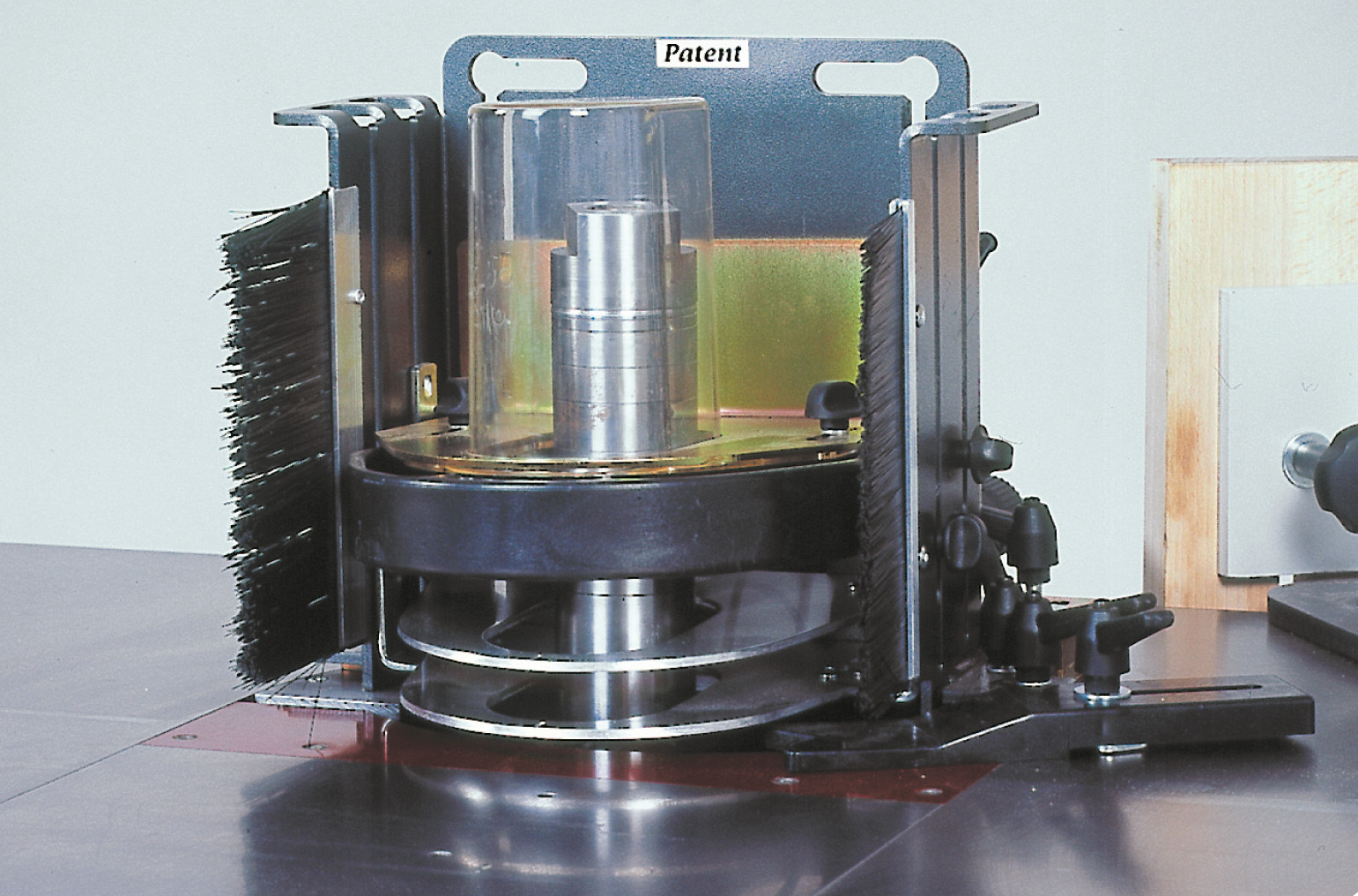

Profiling cover for shape milling

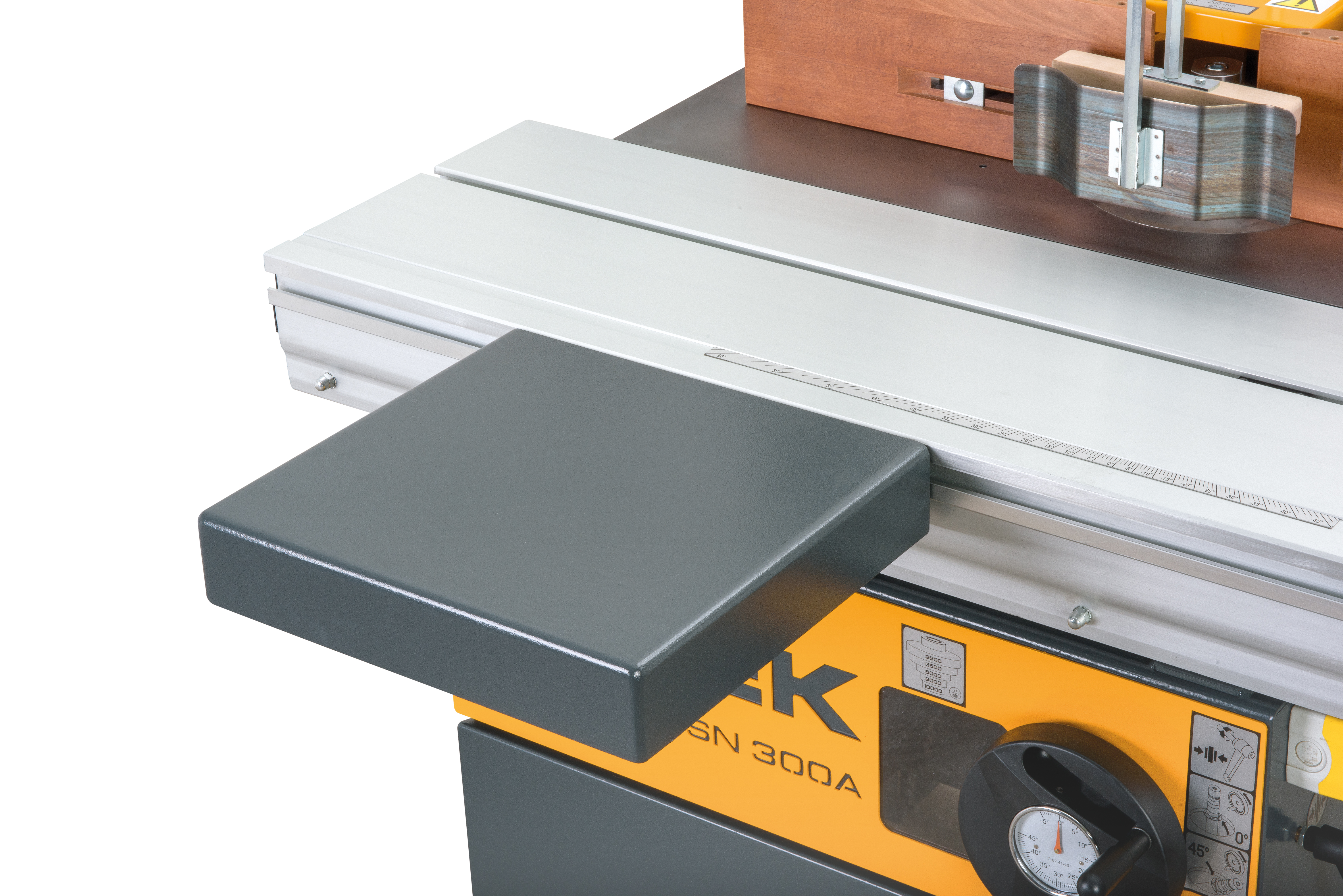

Sliding table extension
Features and standard equipment
- CV 360T/ 1.2 m (2 ft) formatting table on hardened rods
- 4.4kW / S6 main motor
- spindle motor speed reversal
- tilt wheel with angle indication
- MORI support cover and wooden rulers
- 900 mm short angle ruler with stop
- clamp for formatting table - single column eccentric
Equipment on request
- forming table CV 360T/ 2 m on hardened rods
- extension of the sliding table

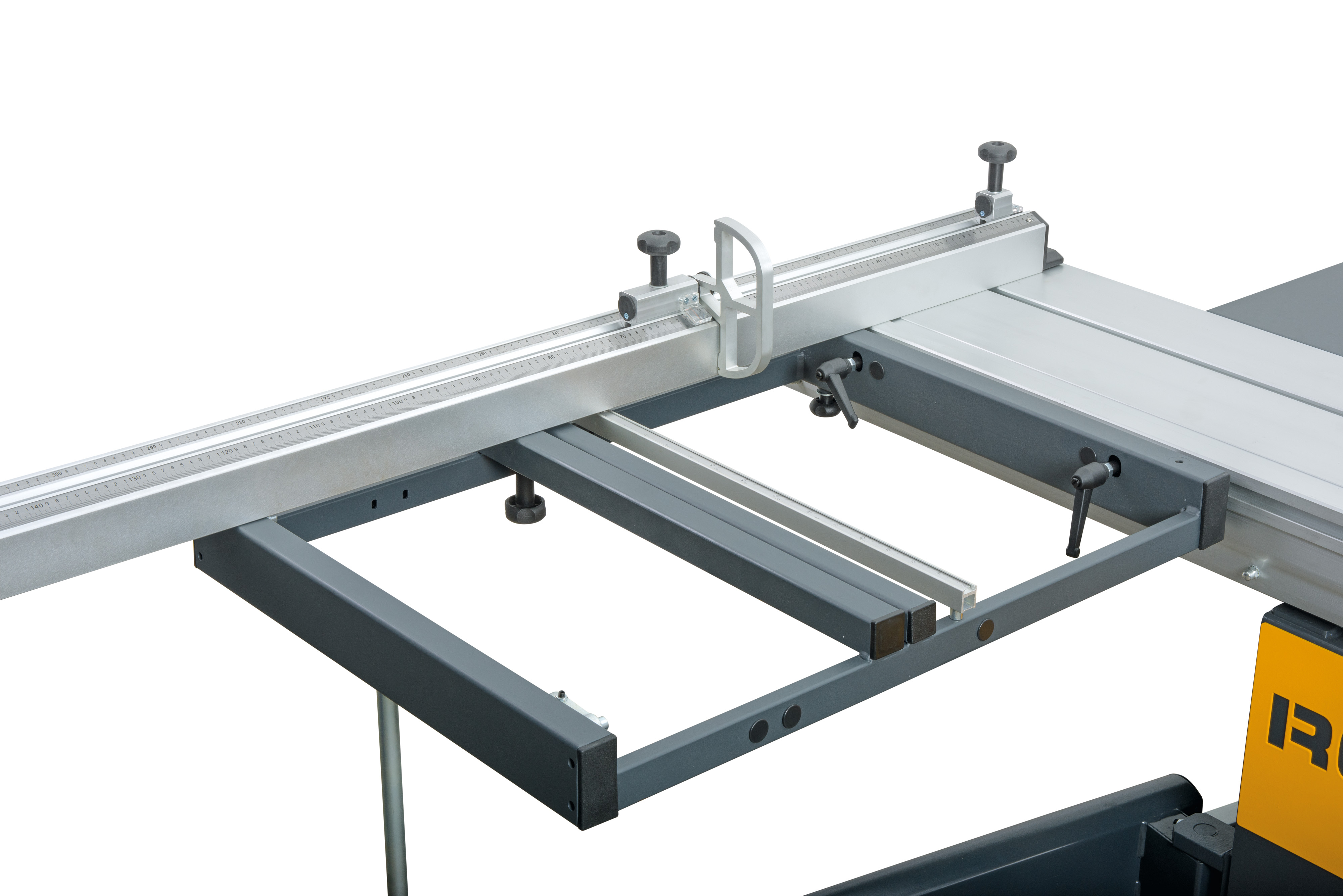

- support frame 870 x 630 mm
- left and right side extensions
- spindle for 30mm diameter shank tools + 8 and 12mm collet, clamping height 80mm
- interchangeable spindle including mandrel diameter 30mm, clamping height 95mm
