Panel saw PK250A
The design of this machine went through a lot of technical innovations which increased the useful featurettes of the machine. Quality processing ranks this saw among the best in its class. . It is equipped with a sliding table with very precise and solid mounting on steel round bars CV 360T in basic version. The saw unit mounting in a robust cast iron body with a scoring unit guarantees accuracy, solidity, and reliability.
Product code: 1247002
Technical parameters
| S6 engine performance 40% | 4,4 kW/3x400V (2,2 kW/1x230V) |
| Motor speed | 2,840/min (3,410/min [60Hz]) |
| Max. disc with pre-cut | Ø 315 mm |
| Spindle diameter | 30 mm (5/8″ | 1″) |
| Saw speed | 4 400/min. |
| Max. cutting height with pre-cut | 100 mm (70 mm [45°]) |
| Tilting of blades | 0° ÷ 45° |
| Max. cutting width | 800 mm (1 050; 1 500 mm) |
| Scoring unit motor power | 0,75 kW |
| Disc diameter | Ø 120 mm (100 mm) |
| Spindle diameter | Ø 20 mm (3/4″) |
| Speed (driven by separate electric motor) | 8,530/min (10,230/min [60Hz]) |
| Length (at CV360 - 1 200 mm) | 1 355 mm |
| Length (at CV360 - 2 000 mm) | 2 155 mm |
| Width | 1 995 mm |
| Table height | 890 mm |
| Max. machine height | 1 180 mm |
| Table dimensions | 955 x 400 mm |
| Suction diameter | 100 + 40 (60) mm |
| Gross weight | 340 / 410 kg |
| Net weight | 330 / 400 kg |
| Table dimensions | 1 200 (2 000) x 360 mm |
| Cutting length of the saw | 1 200 (2 000) mm |
| Voltage/frequency | 3x400V (3x230V | 1x230V) / 50(60)Hz |
| Line protection | 16 A (25 A) |
| Workplace noise (without technology) | 81.9 dB(A) |
| Workplace noise (with technology) | 86.2 dB(A) |
| Acoustic performance (without technology) | 89.6 dB(A) |
| Acoustic performance (with technology) | 93.6 dB(A) |
Warranty conditions
- 12 months
You will definitely appreciate this product
Ripping stop
Rip fence with digital indication
Stop with digital readout
Scoring unit with external adjustment
Tilting fence

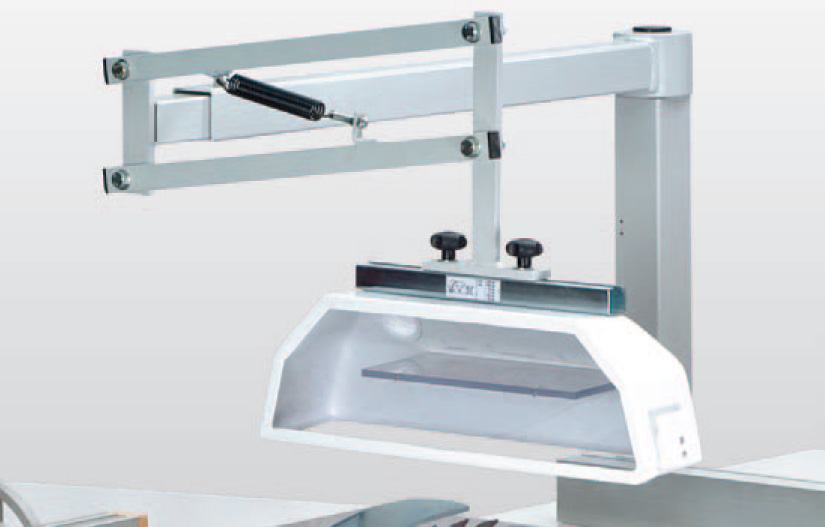

Upper suction (Parallelogram ROJEK)
Saw mechanics
Push lever for sliding table
Rip fence with fine tuning
Precise angle adjustment 5°; 10°; 15°; 20°; 22.5°; 30°; 40°; 45°
Massive mounting of saw mechanics
Supporting profile of the frame
Outrigger roller
Sliding table extension
Installation of the sliding table on bars
Features and standard equipment
- CV 360T / 1.2 m (2 ft) formatting table on hardened rods
- 4.4kW / S6 main motor
- tilt wheel with angle indication
- cast iron table rear extension
- short angle ruler 800 mm with stop
- clamp for formatting table - single column eccentric
- Cutting width 800 mm with extraction and connection
- cast-iron holder for longitudinal aluminium ruler with microslide
Equipment on request
- CV 360T/ 2 m formatting trolley on hardened bars
- 5,3 kW/S6 engine
- cutting width 500 mm
- cutting width 1050 mm
- ELGO electronic ruler measuring of cutting width
- upper extraction parallelogram ROJEK, per blade 350 mm
- DADO version (possibility of attaching a grooving cutter)
- version without pre-cutting mechanism
